special design 21.5 inch touch screen android tablet, 21.5 inch all in one pc with touch desktop computer
special design 21.5 inch touch screen android tablet, 21.5 inch all in one pc with touch desktop computer
Couldn't load pickup availability
Special design 21.5 inch touch screen android tablet, 21.5 inch all in one pc with touch desktop computer
toucLED Panel Parameters
| LED panel(a-Si TFT-LCD WLED backlight)A type |
|||
| Size |
21.5 inch (16:9) |
||
| Display area |
477.6(W)*269.1(H)mm |
||
| Max. resolution |
1920*1080P |
||
| Brightness |
≥250cd/m2 |
Aspect ratio |
≥ 1000:1 |
| Response time |
10(Typ.)(Tr/Td) ms |
Refresh frequency |
60Hz |
| No. Of colors |
16.7M , 52% (CIE1931) LVDS ports 30 Pins |
||
| Angle of viewing |
Full viewing 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
||
| Lifetime |
Min:30000H |
||

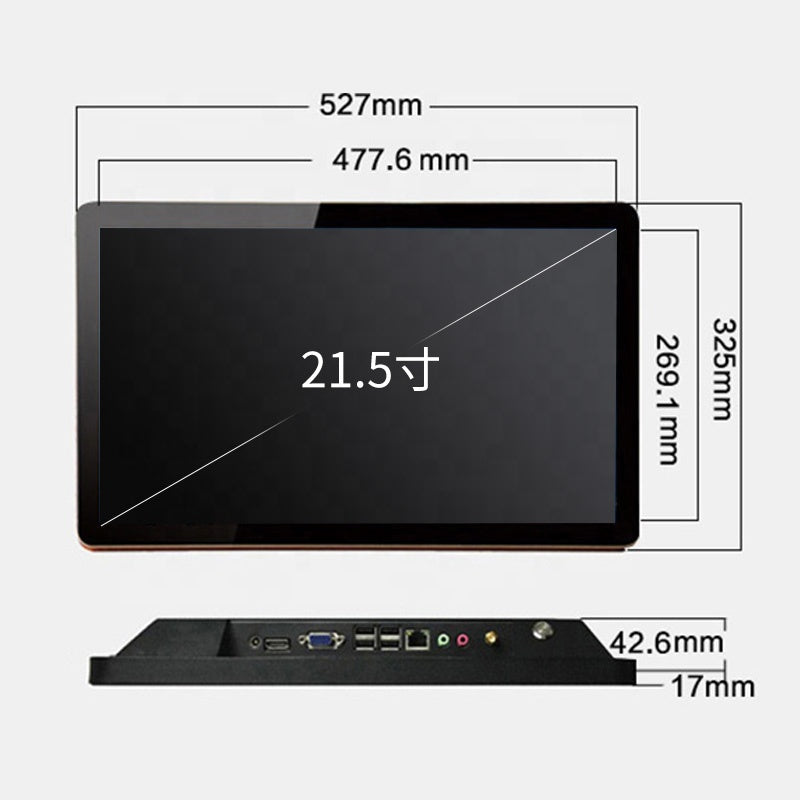

Physical Dimension
| Screen |
21.5 inch |
| Display area |
477.6 * 269.1 mm (16:9) |
| Machine dimension(W×H×T) |
518(W)×314(H)×43.5(T)mm |
| Packing dimension(W×H×T) |
570(W)×440(H)×145(T)mm |
| Stand |
Wall mount default(N.W 0.48 kg),Stand options |
| Wall mount holes(L×W) |
100×100 mm |
| Wall mount screws |
M4 |
| N.W |
4.9 KG |
| G.W |
7.1 KG |
Electrical Performance
| Input power |
110-240V AC 50/60Hz |
Output power |
DC 12V5A |
| Monitor consumption |
20 W |
Standby consumption |
0.5 W |
| Android consumption |
36 W |
Speaker power |
4Ω3w |
| X86 consumption |
60 W |
||
Working Environment
| Working temperature |
-10℃-60℃ |
| Working humidity |
0% - 90% |
| Storage temperature |
0℃-60℃ |
| Storage humidity |
0% - 65% |
h scree
Touch monitor interfaces
| 2.1mm DC12V*1 |
Audio |
1 |
|
| VGA input (15pin D-Sub) |
1 |
HMI input |
1 |
| USB touch interface |
1 |
||
Android AIO interfaces
| Power cord |
2.1mm DC12V*1 |
Headphone |
1 |
| RJ45 |
1 |
HMI |
1 |
| USB (with OTG) |
2 |
WIFI antenna |
1 |
| TF /SD card slot |
1 |
TTL/232/485 serial options |
|
n display
