Product Description

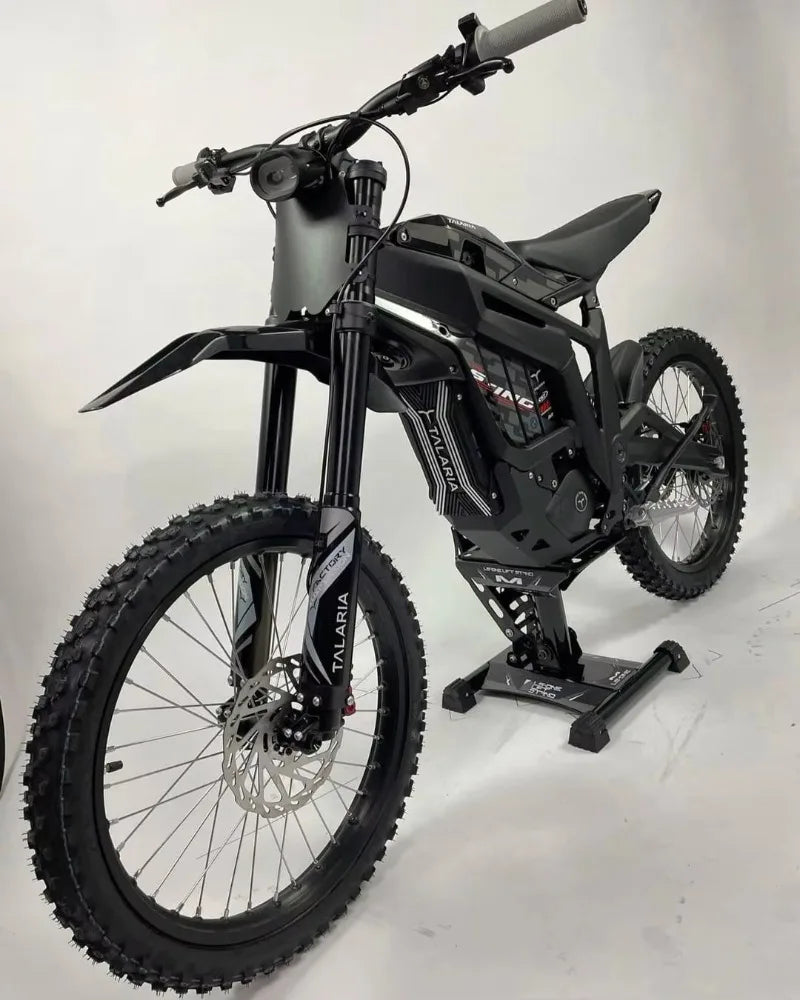

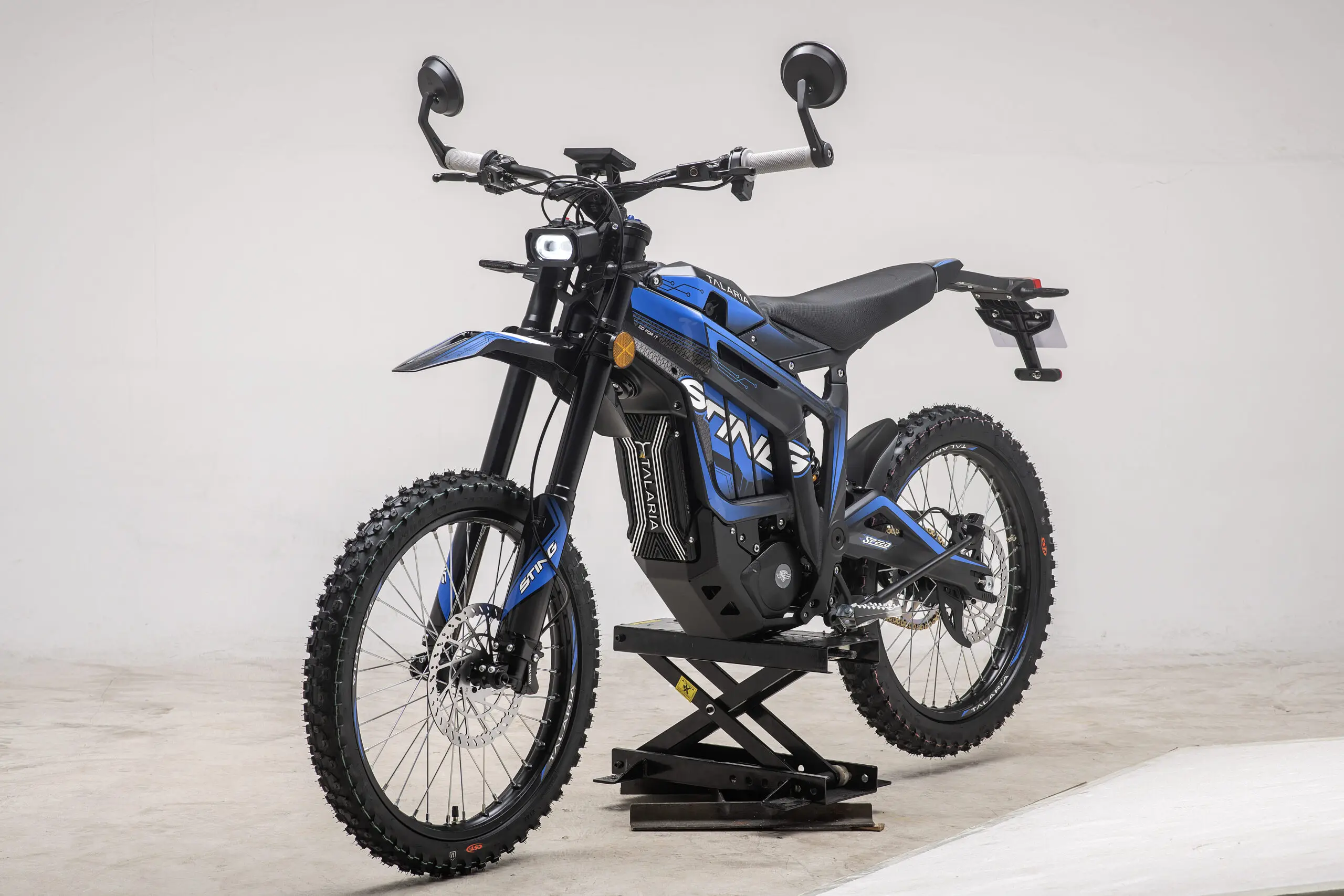

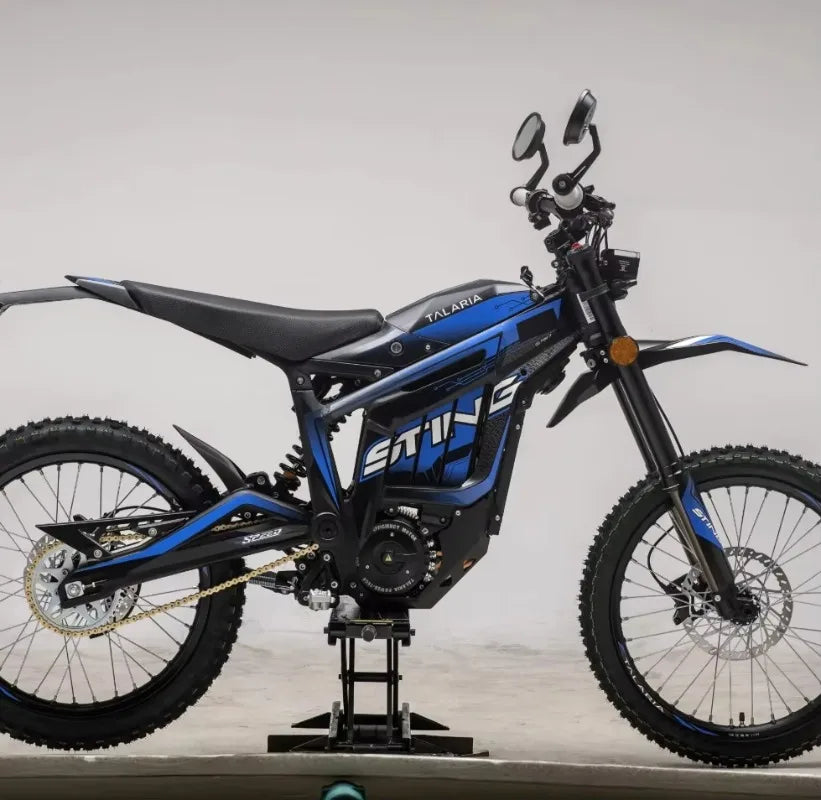

TALARIA STING R MX4

The Talaria STING electric dirt bike was born to bring cutting edgeperformance to all riders. It features aCAD designed light weight frame design,a powerful electric motor deliveringinstant torque,transferred through an intelligent gear drive whilst operating extremely quietly.Its compact well-balanced structure is very easy to maneuver,and requires minimal maintenance All these features make STING anideal off-road bike for more people than ever to enjoy the passion and thrill ofoff-road riding adventures.
Ask us for sticker to decorate your Talaria

Parameter	Talaria Sting R MX4
Motor Type	Air-cololed IPM(internal permanent magnet)
Controller Type	FOC
Rated Volts	60V(DC)
Rated Power	4000W
Peak Power	8000W
Peak Torque	45N.m
Torque on rear wheel	376N.m锛�44T锛�
Peak Efficiency	92%
Gear Ratio	8.35锛�44T锛�
1st Transmission Mode	Gear box
2nd Transmission Mode	Chain drive
Battery	60V 45AH Lithium battery
Display Screen	TFT full color LCD screen
Energy Regeneration method	4-level adjustment
Chassis Material	6061 T4& T6 aluminum alloy
Chassis Technics	Forged by 6000 tons pressure
Headlight	LED headlight
Front fork	Sting custom high performance hydraulic
Rear shocx	Professional off-road performance
Tire size	FR 70/100-19 ; RR 80/100-19
Max speed	85km/h
Max Range	120km
Net weight	66kg(with battery)
Vehicle Diimension	1880x770x1088mm
Seat height	840mm
Wheel Base	1225mm
Length of handle	760mm
Minimum Ground Clearance	260MM
Load Capacity	100KG
Gradeability	45°

Frame

Cutting-edgeengineered frame ispure purpose built,light weight and compact.Using 6061 aluminum alloy,and superior forging process
by 6000 tons of pressure,the frame is qualified to assure you a safe,fun and fearless ridingexperience through even the toughest
terrains.

POWER PACK

STING R is powered by an impressive 60V 45Ah lithium-ion power pack,and easilyswappable.The power packscan
be exchanged with another fully charged power pack in seconds for limitless range.With electric automobile grade 21700
lithium-ion battery cells,state of the art programmed BMS,and optimized internal structure,thisbattery pack is enabled to ensure
the bike brings you safe,hi performance off-road riding.

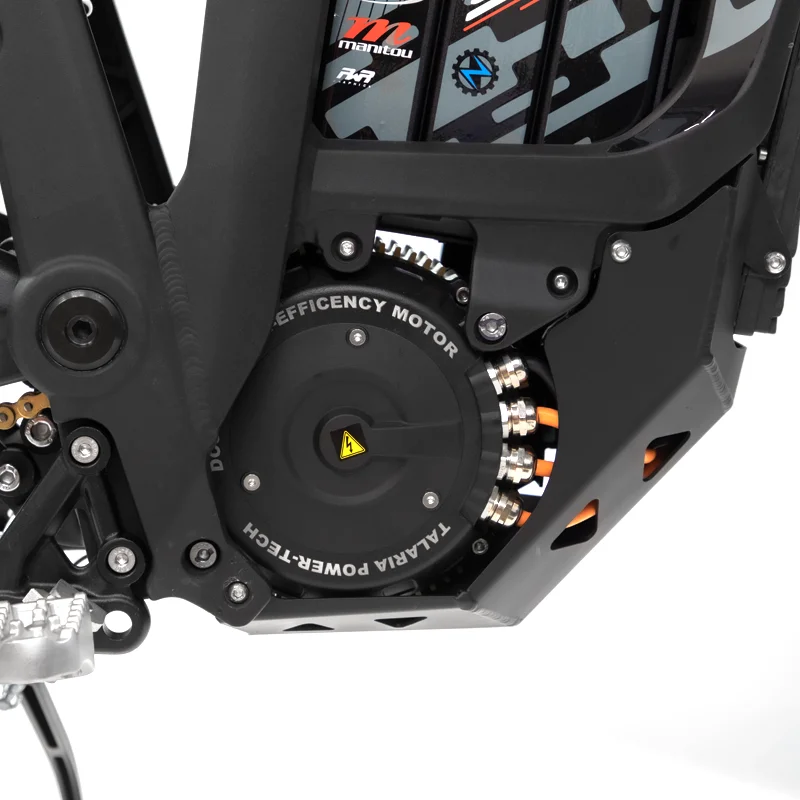

POWERTRAIN

The customized combination powertrain design is just perfect for the light weight electric MX bike.The high efficiency brushless
permanent magnet synchronous mid- drive motor, with top-class magnet material and advanced processing, is available to output
34N.m peak torque, as well as to have 284N.m peak torque to the rear wheel. With exquisitely crafted high accuracy gears, the
gearbox runs even quieter and is much more durable than any belt drive systems.It's time to say goodbye to that broken belt
anxiety.

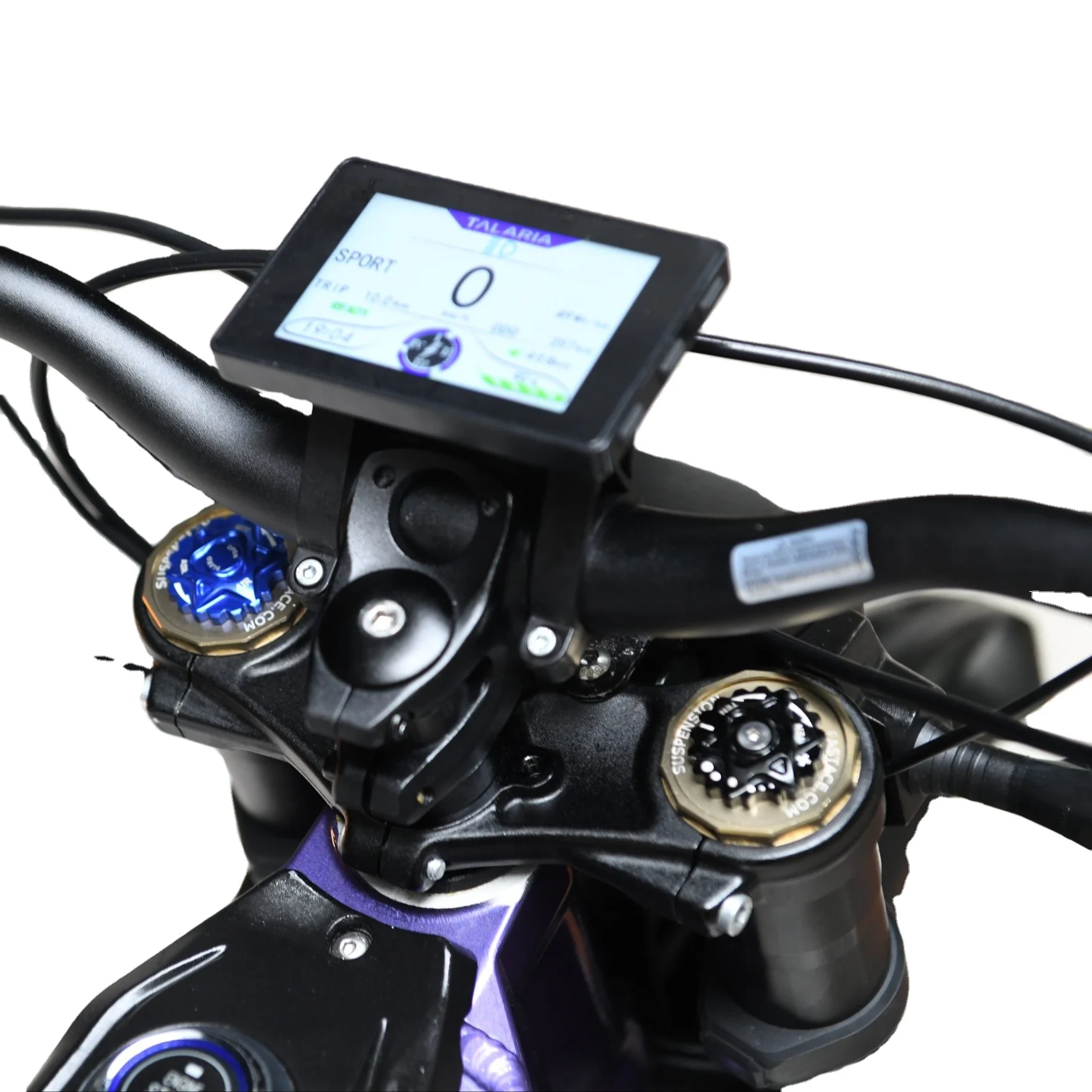

Dash

The dash features a high-contrast OLED display, this will offer riders a clear data display with low power consumption.With CAN
communication, the dash is available to have data transfer with the battery pack's BMS and the motor controller.The display menu
provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and
more.The dash is also adjustable to allow different settings for different wheel size, sprocket size, motor regen levels, and
change between KM/H and MPH to enhance the compatibility of the bike.

Throttle

The Sting uses a unique gear twist structure design, the core parts of the throttle can be well protected, even if the throttle
tube suffers some impact damage, the throttle is still workable. And with the auto mobile level encoder, the throttle can enable
the rider to control the acceleration with ease. It's a specialized product and fantastic for an electric off-road bike.



Specification



Model Name	Talaria Sting R MX4
Motor Type	Air-cooled IPM (Internal Permanent Magnet)
Controller Type	FOC (Field Oriented Control)
Rated Voltage	60V (DC)
Rated Power	4000W
Peak Power	8000W
Max. Torque	45N.m
Rear Wheel Torque	376N.m (44T)
Max. Efficiency	92%
Gear Ratio	1:8.35 (44T)
1st Transmission	Gear Reduction Box
2nd Transmission	Chain
Battery Data	60V / 45Ah
Battery Cells	Brand 21700 Cell
Instrument Panel	3.5-inch TFT Full-color LCD Screen
Energy Recovery	4-level Energy Regeneration
Frame Material	6061 T4 & T6 Aluminum Alloy
Frame Process	6000-ton Pressure Forging
Lighting System	LED
Front Suspension	SING Custom High-performance Hydraulic, 200mm travel
Rear Suspension/Wheel	85mm travel, 220mm wheel travel
Tire Brand & Size	CST FR.: 70/100-19; RR.: 80/100-19
Max. Speed	85KM/H (44T)
Range	120KM
Net Weight	66KG (including battery)
Vehicle Dimensions	1880MM x 770MM x 1088MM
Seat Height	840MM
Wheelbase	1225MM
Handlebar Length	760MM
Min. Ground Clearance	260MM
Max. Load Capacity	100KG
Climbing Ability	45°
